RAICO THERM+ A-V & A-I

The RAICO THERM+ AI/AV aluminum curtainwall system is the reference for high end residential and commercial applications worldwide. The system can be used in skylights (up to 2 degrees inclination) as well as vertical facades. The strength of the system is in its adaptability to suit virtually any architectural intent.

Custom configurations are the norm.

System Features:

  • Traditional 2” box mullion in 8 standard depths from 1” to 8” back sections.
  • T shaped mullion with 9/16” sightline in 8 standard depths from 1” to 8” back sections.
  • Various depths and shapes of pressure plates and beauty caps
  • Optional SSG with internal toggle capturing the inboard light mechanically
  • Large glass to glass corners (with nested spacer bar)
  • Seamless integration of Timber or Steel systems as well as load bearing mullions
  • Supports for oversized glass (locally sourced up to 130” to 240”, up to 3.2m x 18m from Germany)

Energy efficiency (NFRC):

  • Double Glazed single LowE: 1.39 W/m2K (0.24 Btu/h.ft2F)
  • Triple Glazed single LowE: 1.04 W/m2K (0.18 Btu/h.ft2F)
  • Triple Glazed double LowE: 0.7 W/m2K (0.12 Btu/h.ft2F) – PH certified assembly

Insertion elements:

  • Wing 50 zero sightline casement & awning vents (up to 40 sqft)
  • FRAME+ 75/90 tilt and turn (up to 40 sqft)
  • FRAME+ 75 swing door
  • FRAME 120 skylight vent
  • Lift & Slide doors
  • Minimal sightline sliding doors
  • Pivot main entry doors

Aluminum Curtainwall System

Adaptable & highly customizable

Beautycap Options

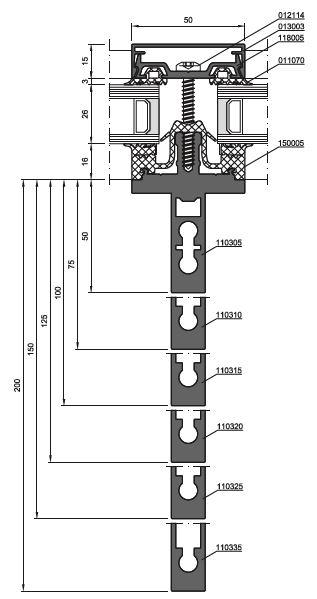

Aluminum Backsections
Featured

Aluminum Curtain Wall Projects

Crabapple Feature
Whistler, B.C.

Crabapple

More Detail & Photos

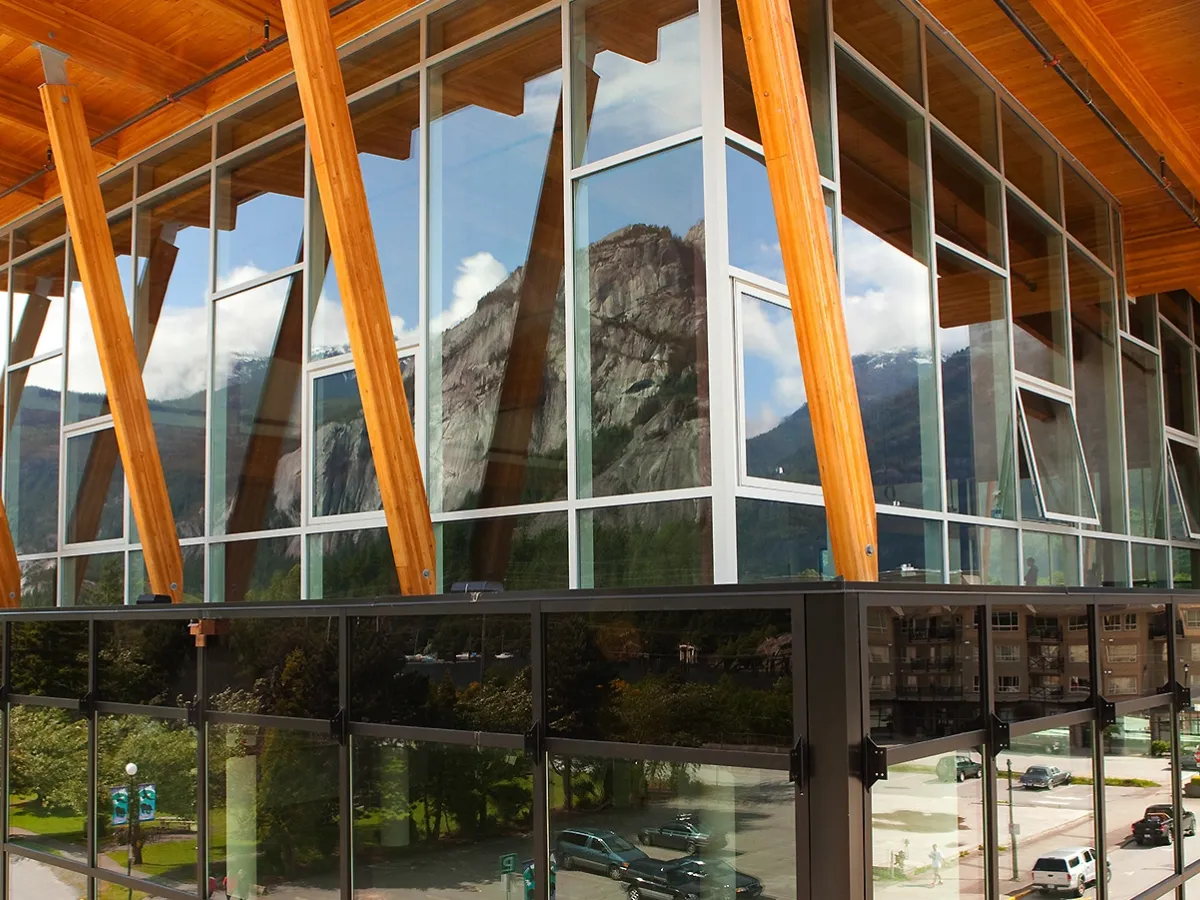

Cornerstone Feature1
Squamish, B.C.

Cornerstone

More Detail & Photos
9501 Emerald Feature
Whistler, B.C.

9501 Emerald

More Detail & Photos
9508 Emerald Feature1
Whistler, B.C.

9508 Emerald

More Detail & Photos
Hillcrest Feature1
Whistler, B.C.

3100 Hillcrest

More Detail & Photos
3113Hillcrest Feature1
Whistler, B.C.

3113 Hilllcrest

More Detail & Photos
Millstream Feature1
West Vancouver, B.C.

Millstream

More Detail & Photos
Newmarket Feature
North Vancouver, B.C.

Newmarket

More Detail & Photos
Nita Lake Feature
Whistler, B.C.

Nita Lake

More Detail & Photos
Nordic Feature1
Whistler, B.C.

Nordic

More Detail & Photos
Toni Feature1
Whistler, B.C.

Toni Sailer Lane

More Detail & Photos
Treetops Feature6
Whistler, B.C.

Treetop Lane

More Detail & Photos
W34 Feature
Vancouver, B.C.

4028 W 34th Ave

More Detail & Photos

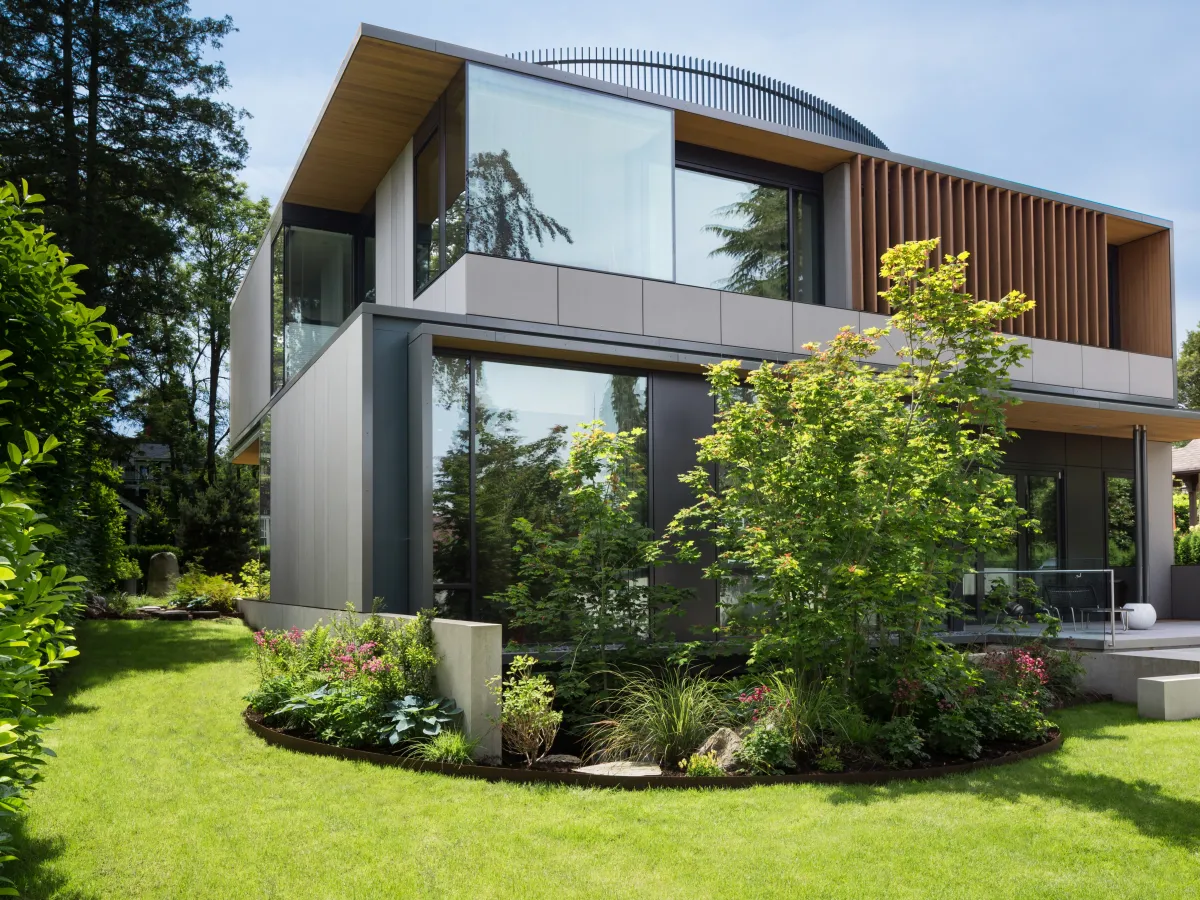

W5 Feature
Vancouver, B.C.

W 5th Ave

More Detail & Photos
Temple Feature1
Kootenay Bay, B.C.

Yasodhara Ashram

More Detail & Photos

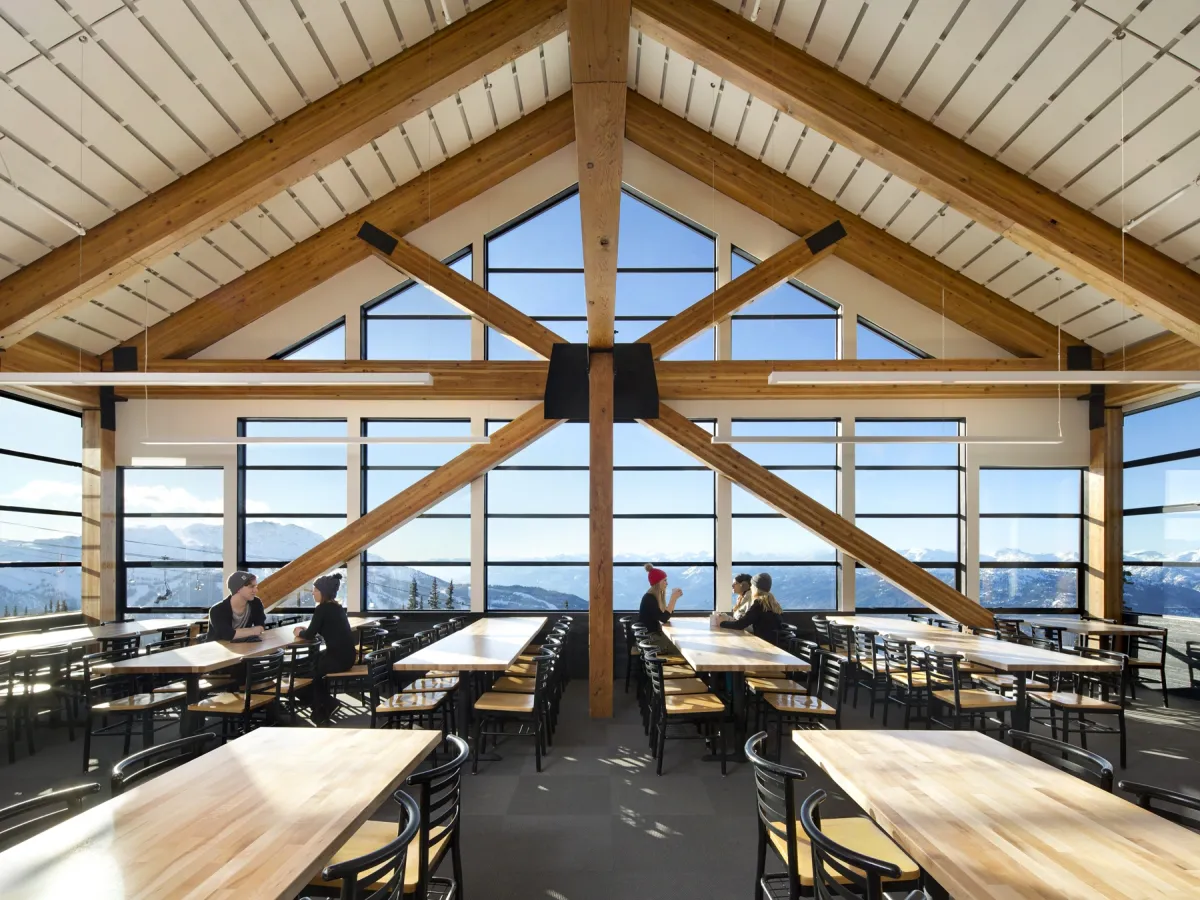

Rv Feature
